ST004 - ROKR - Monocular Telescope
（Click the pictures to view in full size）

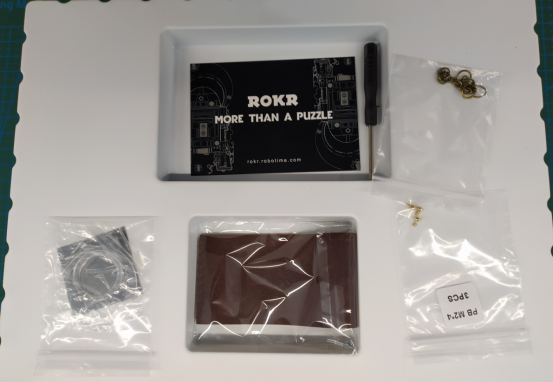

Parts list

553×382 175 KB

Assembling Problems

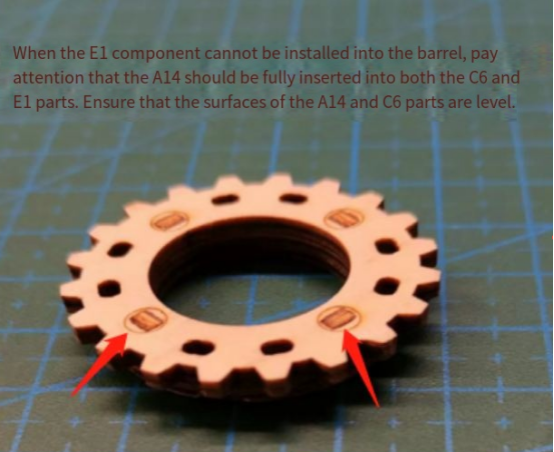

1.A14 should be fully inserted into the C6 and E1, and the surfaces of the A14 and C6 are level.

554×452 288 KB

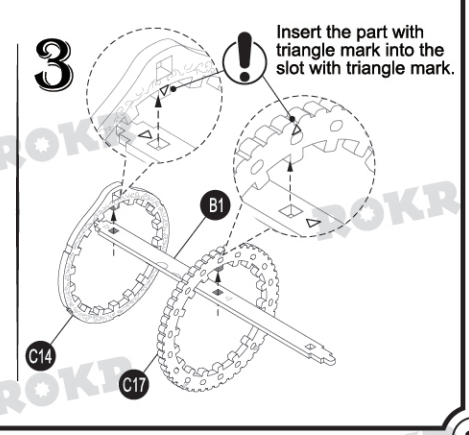

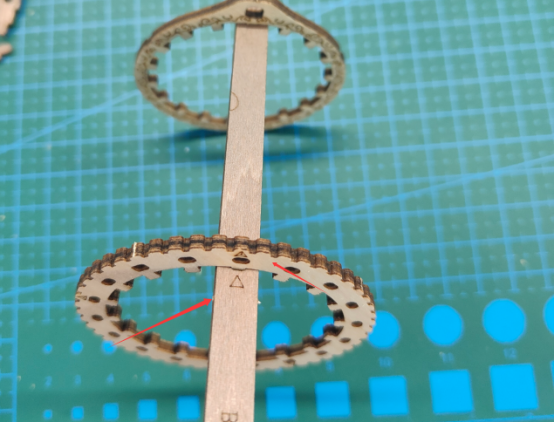

  1. C17 with triangle mark should be inserted into the slot with triangle mark on B1.

554×423 308 KB

469×435 93.1 KB
