MI04 - ROKR - Emperor Scorpion Model
（Click the pictures to view in full size）

Problems of Parts

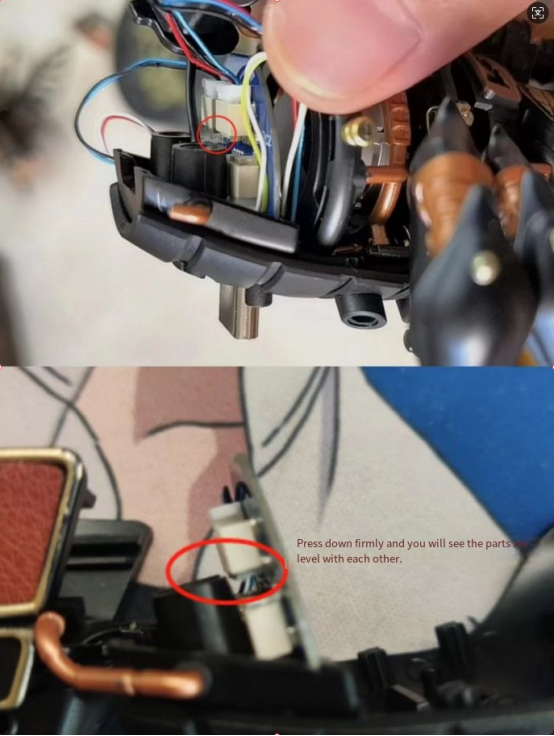

  1. The correct way to plug the wires: plug the wires into the base with the circuit board.

554×474 371 KB

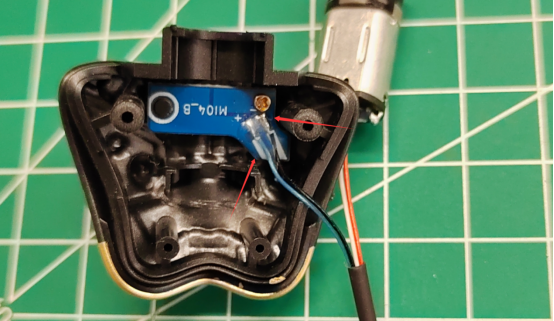

  1. The blue and black wires of P3 correspond to the positive and negative poles respectively. If this part fail to check the connection, please contact customer service to re-issue the part.

554×321 285 KB

Functional problems
  1. No reaction.

① Check the battery: there can be no old batteries or positive and negative poles.

② Check the switch: touch the switch at the bottom switch box.

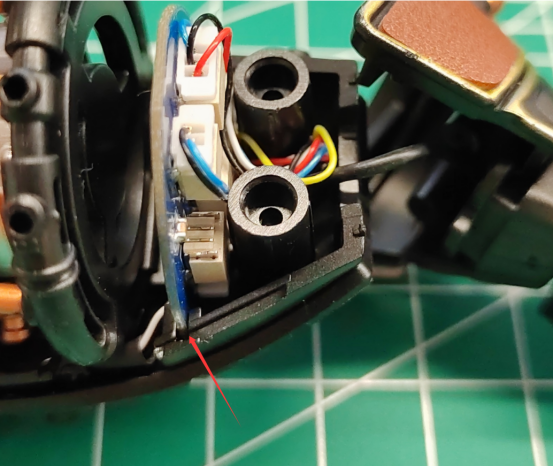

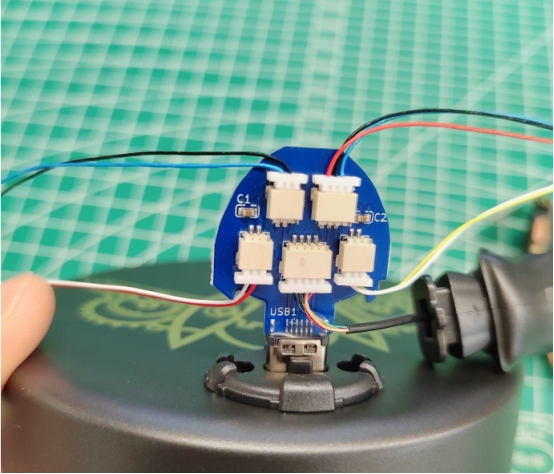

  1. The light is on / flashing, but the motor does not rotate: check if the circuit board is inserted into the bottom.

554×736 431 KB

554×466 349 KB
