MI03 - ROKR - Storm Beetle Model
（Click the pictures to view in full size）
Functional problems
- No reaction.
① Check the battery: there can be no old batteries or positive and negative poles.
② Check the switch: touch the switch at the bottom switch box.

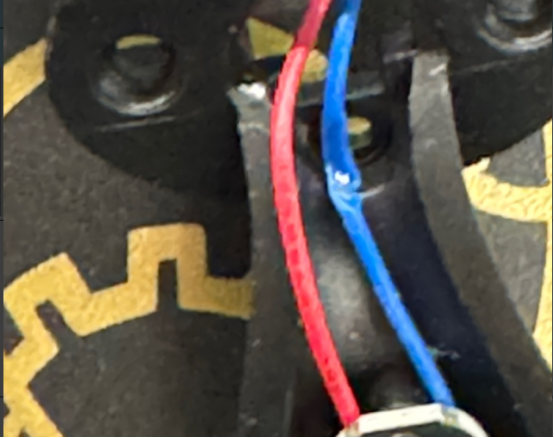

③ Check the assembly direction of the base power switch; check if the power switch wire is crushed.
- Stuck.

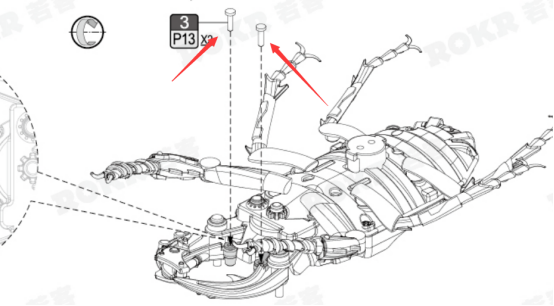

① Check if P13 is misused as a screw, resulting in the clamp stuck.
② Check if the three screws on the head are too tight.

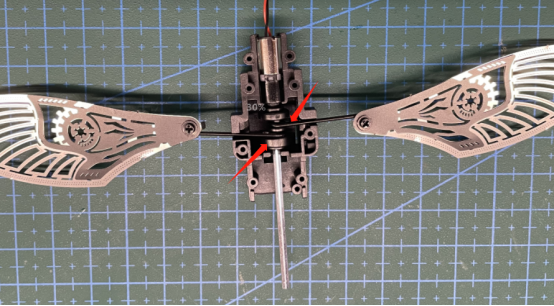

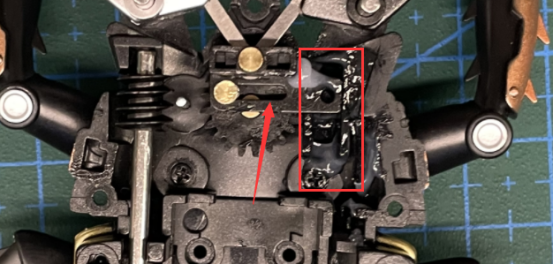

③ Check if A9 is greased.

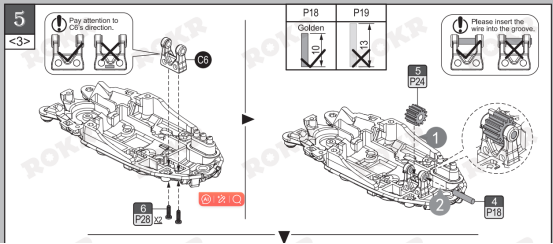

④ Check if direction of C6 is assembled reversely; if P18 is used correctly.

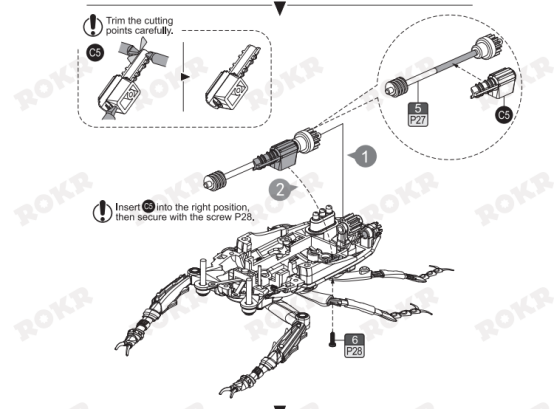

⑤ Check if the cutting points of C5 are cut clearly.

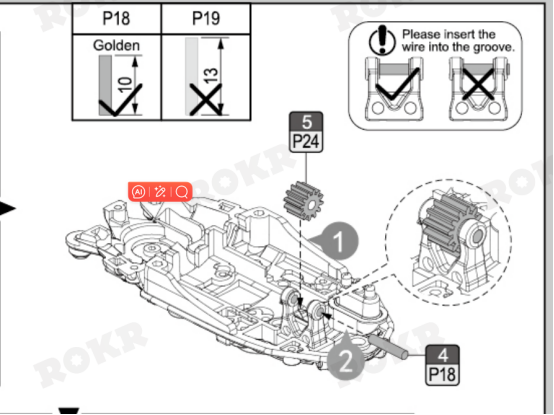

⑥ Check if P18 is misused as P19.

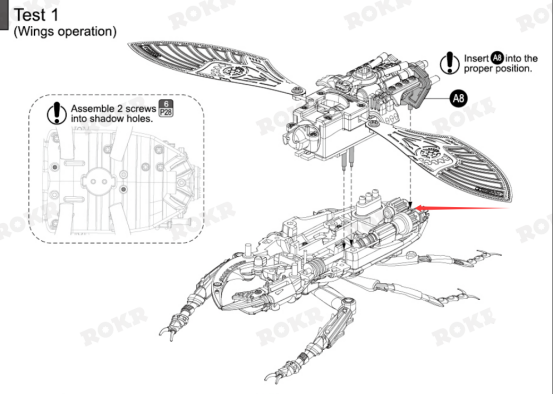

⑦ Do not press A8 completely to the end (This is very important).

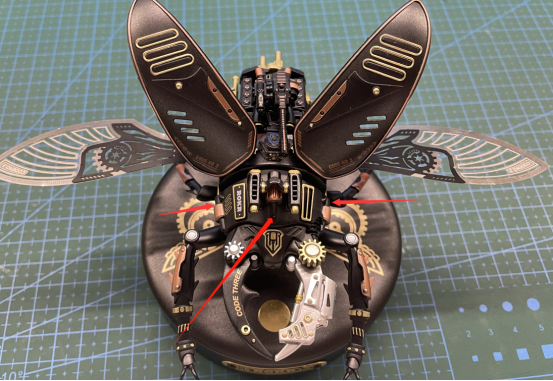

⑧ Check if the wing linkage is assembled reversely.
