LC901C/LC901 - ROKR - Cuckoo Clock - [Assembly Instruction]

Need a Hand? ROKR
1

Assembly Instruction

4-18
4-181200×1200 354 KB

FAQ
LC901C/LC901 - ROKR - Cuckoo Clock
（Click the pictures to view in full size）

Problem of Parts

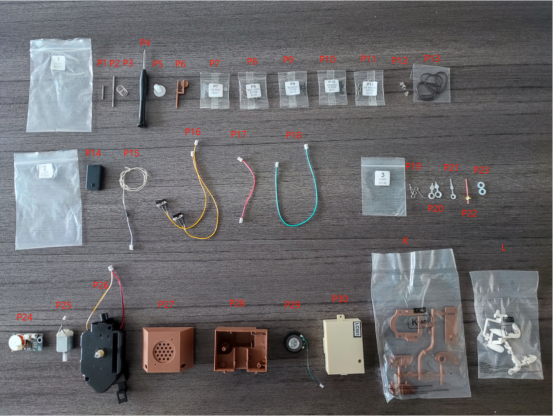

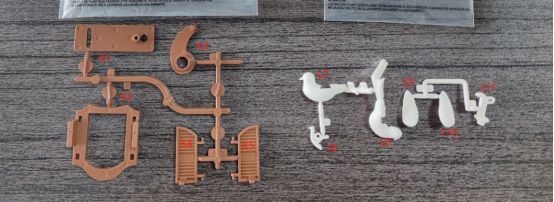

  1. Parts list.

554×416 368 KB

554×202 212 KB

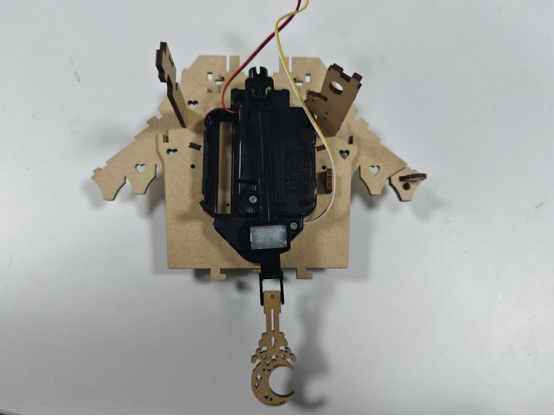

2.Before assembly, check these wires are not wound.

554×416 154 KB

Functional Problems

Setting the Hourly Chime: Please recalibrate the time by removing the minute hand and slowly turning the dial counterclockwise until a “click” is heard, then stop. Reinstall the minute hand to align with XII, adjust the time to the current moment, and then reload the batteries.
