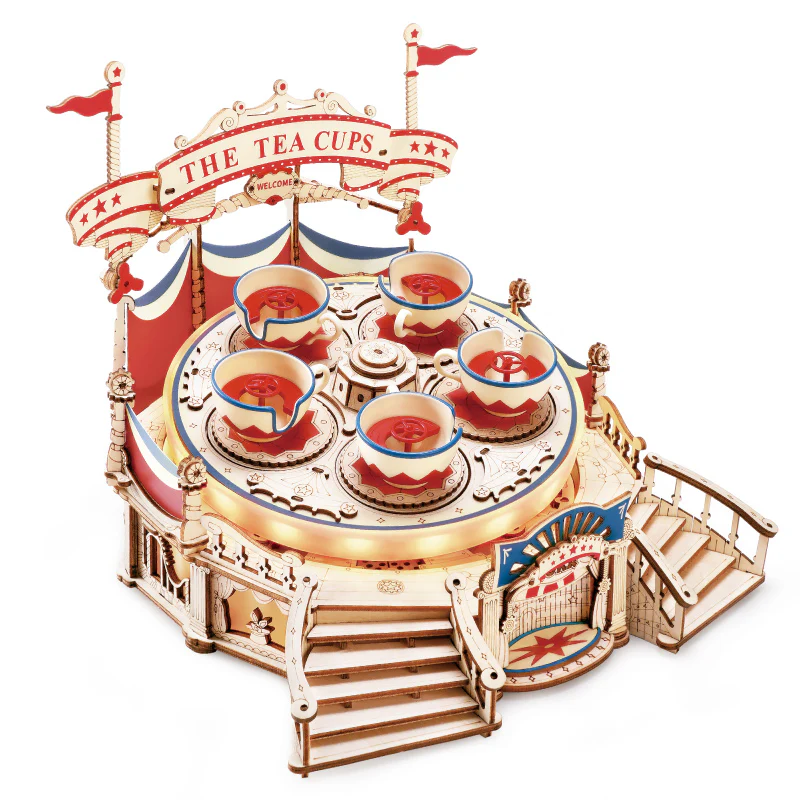

EA04 - ROKR - Tilt-A-Whirl DIY Music Box
（Click the pictures to view in full size）
Functional problems
Functional problems
- There is no response at all after touching the switch: check if the positive and negative terminals of the battery and the wiring of the battery box port are correct.

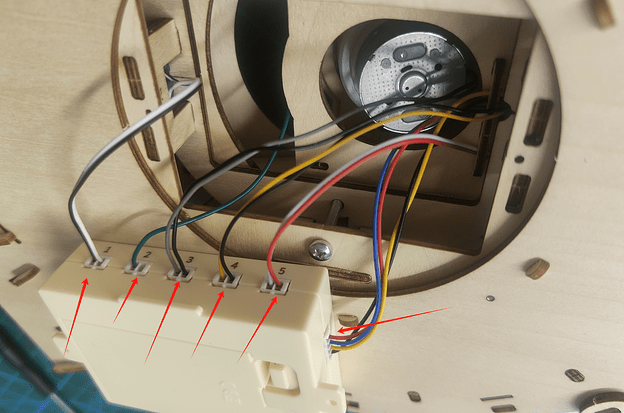

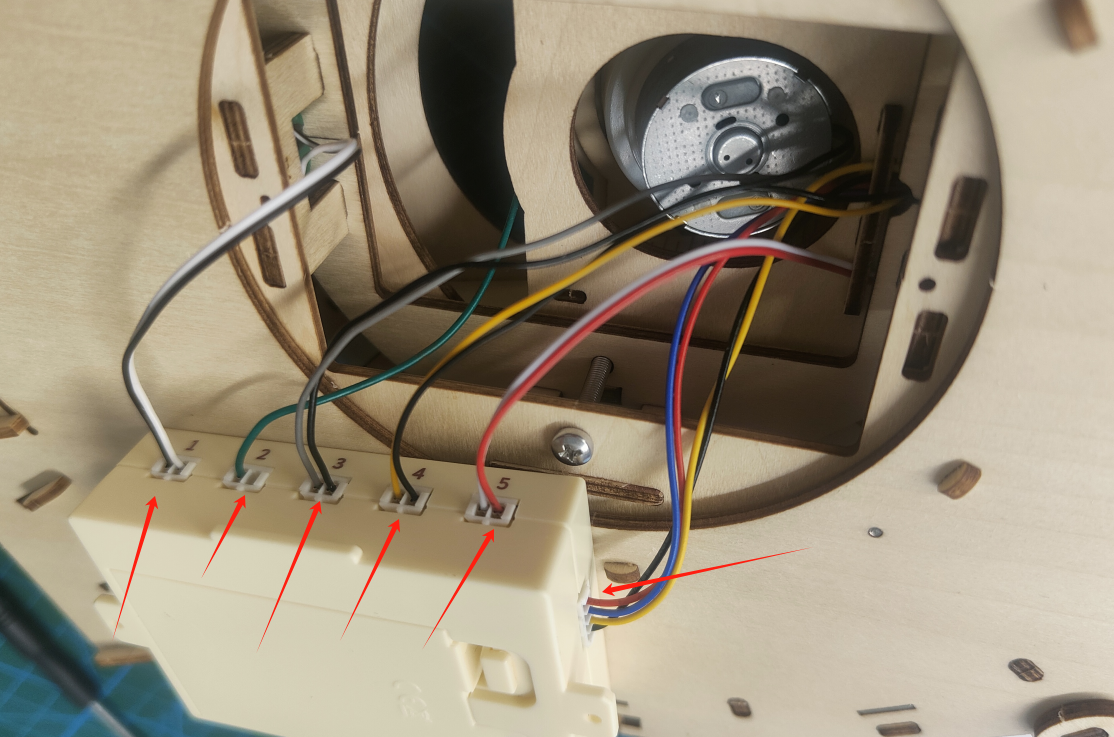

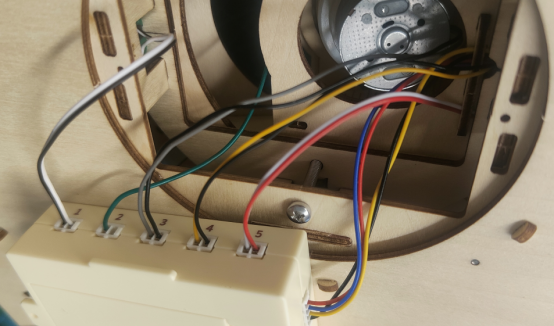

- Click the touch switch and the light flashes once and stops. Click it once and it flashes once and stops: check if the wiring of the battery box port at the bottom is correct.
- The product does not rotate after the base is assembled:

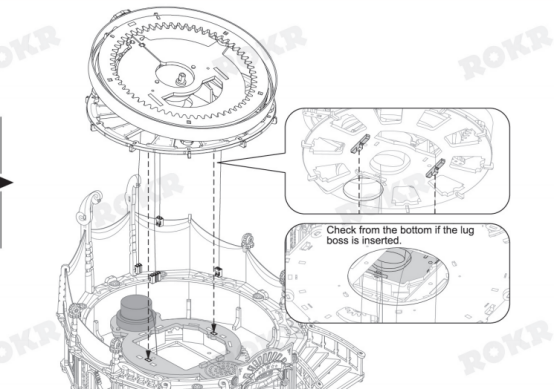

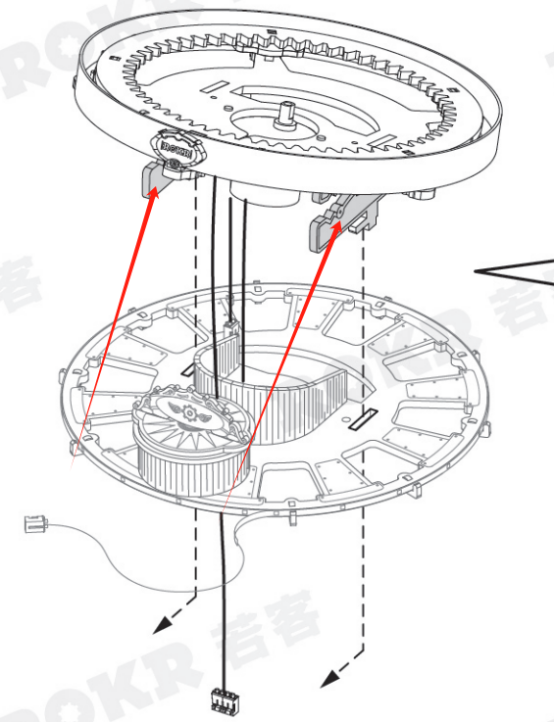

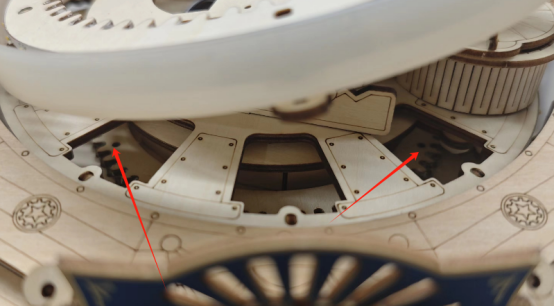

① Check if the components of C11 and C13 are pressed to the end.

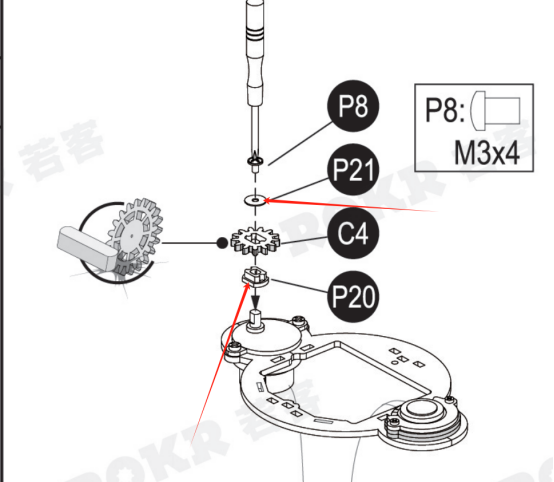

② Check if P20 is assembled reversely, and if P21 is missing.

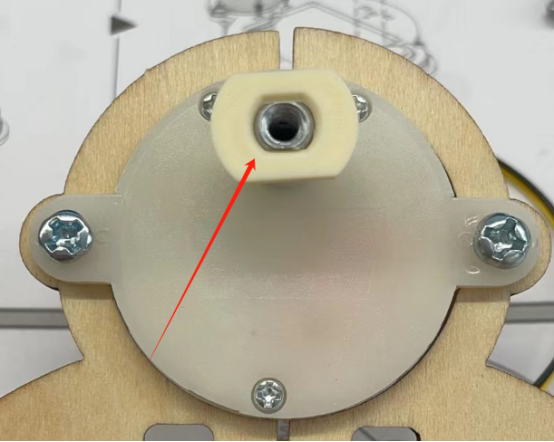

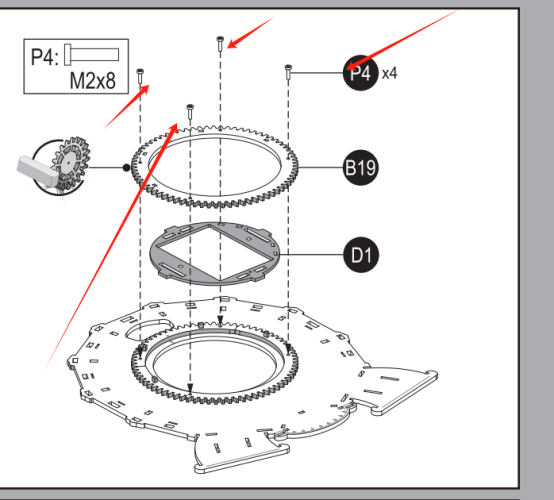

③ Check if the screw P10 at the bottom is tightened and if the screw P4 is tightened.

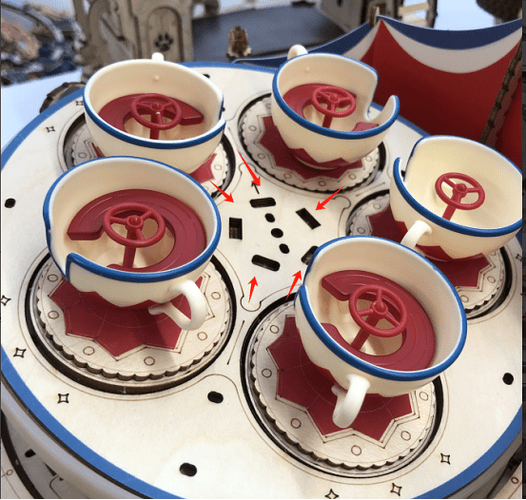

The assembled cup does not rotate.

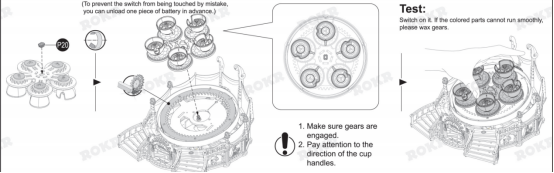

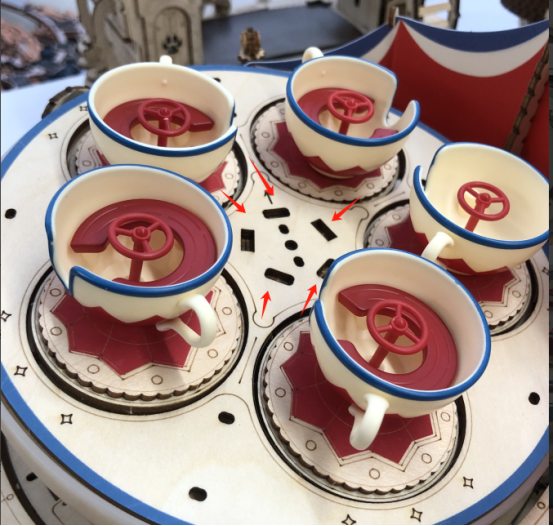

①Check if the positive and negative poles of the battery are right, check if P20 is assembled, and check for the direction of the cup handles.

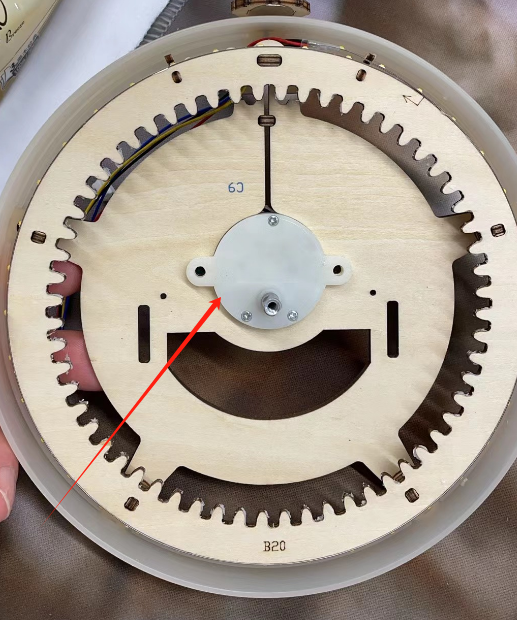

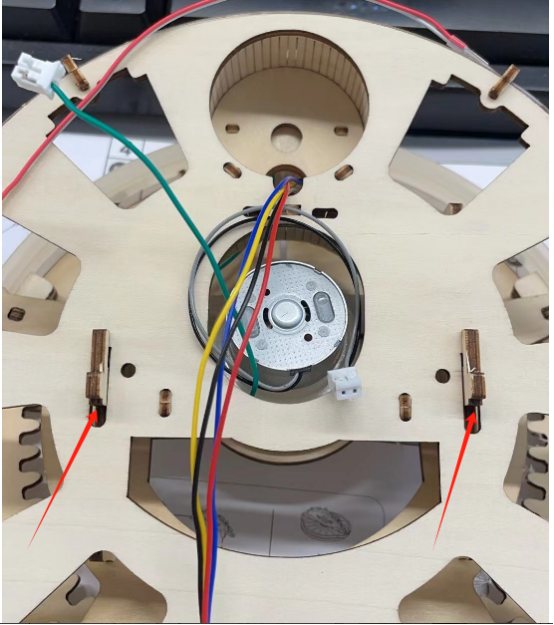

②Check if the motor is connected to P13 the Gray&Black wire, and check if the motor is assembled on it.

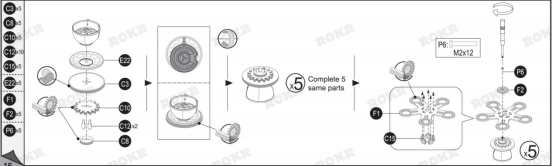

③Check if C8, C10, C3 are polished and waxed, and if F1 is polished and waxed; check if F2 is missing, and if C2 is polished; check if C2 is assembled reversely.
④C2 is not completely pressed to the end.
